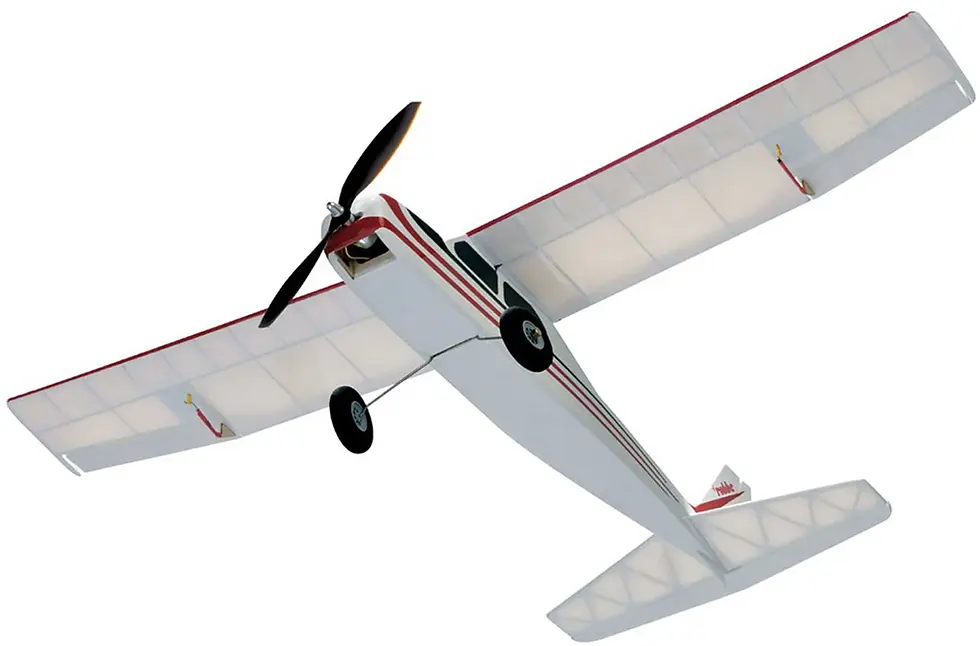

CHARTER XS kit
Robbe Modellsport CHARTER XS kit
Puistolennokki balsa-vaneri rakenteella.
Charter XS lennokissa on luontaisesti vakaat lento-ominaisuudet.
Yksinkertaiset taitolentoliikkeet kuten silmukka, vaakakierrre ovat mahdollisia.
Toiminnot:
- Siivekkeet
- Korkeusperäsin
- Sivuperäsin
- Moottori
Tekniset tiedot:
Kärkiväli: 810mm
Lentopaino: noin 330g
Moottorisuositus: 2220 1300kV
Akku: 2-3S 350mAh
Robbe Modellsport CHARTER XS KIT "MADE IN GERMANY
Park flyer in wood construction. Charterle closes the gap between the Trainer Charter and the indoor model Mini Charter. The light all wood model shows the typical, inherently stable flight characteristics of a parkflyer with a supporting wing profile. Simple aerobatics such as loops, turns and reels are possible because all oars are controlled. The power-adapted BL motor is powered by a 2-3-cell 350 mAh LiPo battery and allows flight times of 8 - 9 minutes. Due to the high level of prefabrication of all parts and the good-natured flight characteristics, Charter XS is equally suitable for beginners and relaxed flying after work.
RC-Functions
- Aileron
- Rudder
- Elevator
- engine
Recommended Equipment
- Radio from 4 Channels with Receiver
- Brushless-Outrunner 2220 1300KV
- Propeller 8 x 3,8 No. 54000013
- Brushless-Regulator BEC 10-12A 2-3s LiPo
- 2x No. S0307 Servo RoVoR 3,7g (Aileron)
- 2x No. S0009 Servo RoVoR S0009 9g (Rudder and Elevator)
- 1x No. 6600NXE LiPo battery robbe NXE-Power EVO 2S450/30C or
- 1x No. 6601NXE LiPo battery robbe NXE-Power EVO 3S450/30C
- Plugs for power supply
- Shrink-on tube
- LiPo-Charger + Equipment
necessary Covering
- Wings: ca. 900 x 300 mm
- Fuselage: ca. 600 x 400 mm
- Elevator: ca. 350 x 300 mm
- Rudder: ca. 300 x 250 mm
Box contents
- Lasercut Wood-modules incl. rudder-horns and holms
- CFK-Pipe for nose-bar
- Light, 2mm wire for undercarriage
- 0,8mm wire for rudder-stearing
- Bits and pieces for assembling
- Instructions with illustrations and 1:1 construction plan
Technical data
Wing-span (mm): 810 Flight weight approx. (g): 330 Control: H,S,Q,M Manufacturer: Robbe Fuselage: Wood Wings: Wood/rib construction Rec. engine: BL 2220 1300KV Rec. Battery: 2-3S/350mAh 26C LiXX Version: KIT Flight Skill: Beginners Build Skill: Professional Drive Type: Electric
