DLE 20 RA moottori
The DLE-20RA has the features you're looking for. Rear-exhaust design makes it an easy install even in cramped cowls — and a beam mount makes installation easy. A rear pumper carb offers consistently superior performance, as well as simple installation and adjustments.
A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20RA another attractive alternative to glow... and a solid buy for value and performance.
Features:
- Light, efficient design for a high power-to-weight ratio
- Lightweight piston for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Sealed crankshaft bearings
- Perfect for use with tuned pipes
- Custom pumper carb
- Updated muffler for excellent aeration and power
Specifications:
Stock Number: DLEG0420
Displacement: 20.0 cc (1.22 cu in)
Bore: 1.26 in (32 mm)
Stroke: 0.98 in (25 mm)
Weight:
Engine: 1.46 lb (660 g)
Muffler: 2.8 oz (80 g)
Ignition Module: 4.6 oz (130 g)
Total: Weight: 1.92 lb (870 g)
RPM Range: 1,700-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller

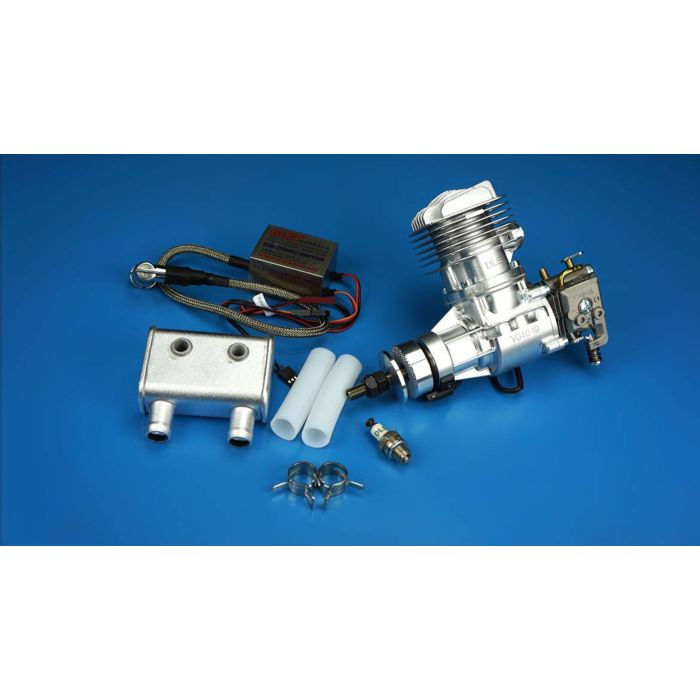

Includes: electronic ignition module, muffler, spark plug, manual, gasket, bolts, throttle arm extension & two exhaust extensions
Suggested Propellers: 14x10, 15x8, 16x6, 16x8 & 17x6
Suggested Break-in Prop: n/a
Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2326
Static Thrust: 13.88 lb (6.3 kg) @ 328 ft (100 m) altitude; 12.34 lb (5.6 kg) @ 5,900 ft (1800 m) altitude
