JP EDF 120mm 12-lapainen puhallin ja 18S 510Kv moottori

Puhallin valmistettu kokonaan alumiinista.

Tehtaalla valmiiksi tasapainoitettu.

Teho:

18S (72.0V) : 104A / 9.4 kg / 7488 W
18S (75.6V) : 116 A / 10.3kg / 8769 W
18S (78.3V) : 123 A / 10.8 kg / 9631 W

Pituus ilman moottoria: 80mm

Paino moottorilla: 710g

Ulkomitta: 123mm

Sisämitta: 120mm

Roottori: 12-lapa, 120mm

Stators: 8

JP EDF 120mm puhallin ja 18S 510Kv moottori

Name: JP EDF 120mm puhallin ja 18S 510Kv moottori
Brand: JPHobby
SKU: JPH-EDF120-18S-CCW

SKU: JPH-EDF120-18S-CCW

€610.00

Quantity

EDF Ducted Fan JP Hobby 120mm + motor 18s 510Kv

100% CNC aluminium JP Hobby EDF unit (shroud and rotor) for 18s
Jingpin Hobby uses High grade aluminium alloy material for highest rigid structure and lightest weight.

The shroud acts as a heat sink, removing heat from the motor. This design creates a more efficiently running motor and will provide peak performance while extending the lifespan of the motor.

The highly rigid structure design is capable of running up to high RPM to produce extremely high efflux velocity for maximum speed and efficiency.

Anti Blade flying out design,the Blades be safety kept in the shroud and without damage.It is the best replacement for your plastic or carbon shroud if you want to have a safety EDF fan.

Each metal blade is precisely made of High Grade Aluminum alloy to generate jet airflow. Every blade has been tested for 8 hours of metal fatigue test as well as in the dynamic balance machine for calibration, making it bring a better and safer user experience for every RC fan.

You could assemble our EDF system with any other motor without losing dynamic balance effect.

The motor and fan unit comes assembled and balanced from the factory.

About the above measures : they have been read on the test bench with the intake lip on the unit. The measures have been made using a bench stabilized power source. Results may changed depening upon your equipment and situation.

Description / LiPo	18s (72.0v)	18s (75.6v)	18s (78.3v)
Thrust:	9.4 kg	10.3 kg	10.8 kg
Current:	104 A	116 A	123 A
Power:	7488 W	8769 W	9631 W
Recommended ESC:	150A HV	150 A / HV	150 A / HV
Min recommended battery:	5000mAh 40C	5000mAh 40C	5000mAh 40C

Special high grade aluminum quality

Motor Kv: 510

Motor: 5050 -18S (8mm axle) Outrunner 12 poles

Motor diameter: 42mm

Motor length: 50mm

Rotor: 120mm 12 blades aluminium

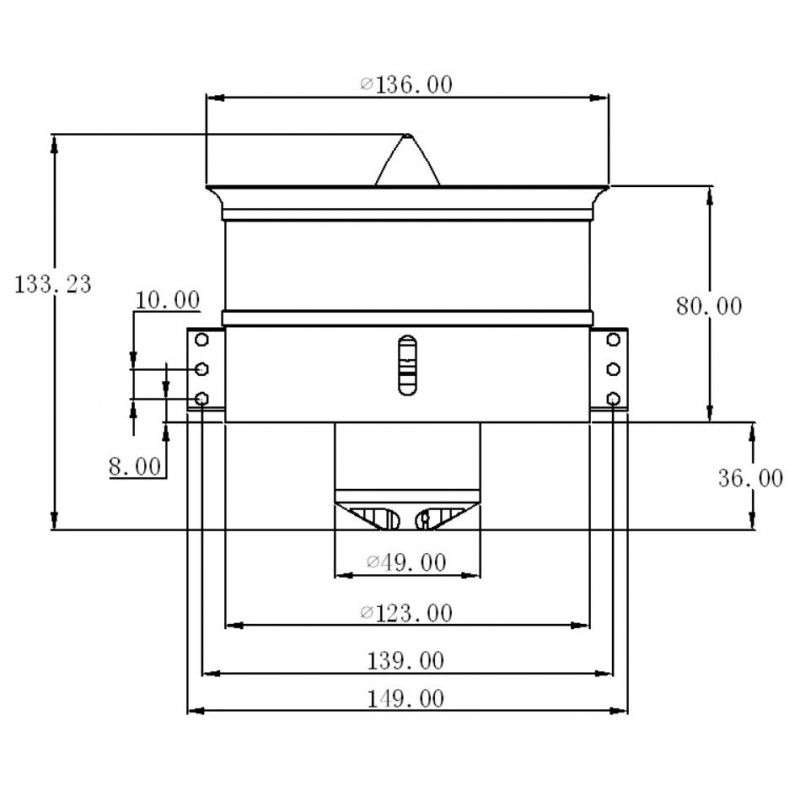

External diameter: 123mm

Internal diameter: 120mm

Inlet ring diameter: 136mm (removable)

Ejection diameter: 120 mm

Combo max thrust: 10.8Kg

Weight: 710g (combo EDF + lip + motor )

Max efficiency: 90 %

Recommended max. rotation speed: 82000

Speed Control Advanced Timing Setting: 15° and under

Connections: Banana / PK 6mm (in place)
