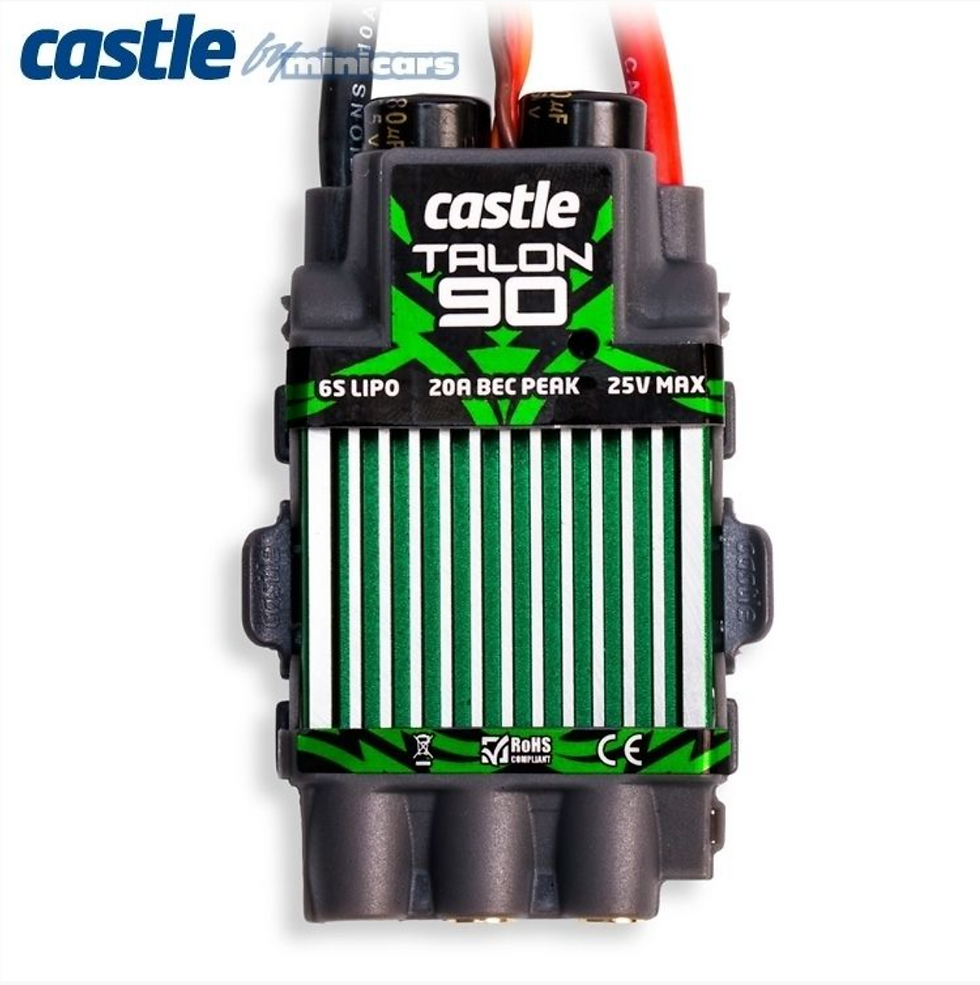

Talon 90: the ESC with the biggest BEC.

Talon 90 sports a BEC designed for today's servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

House 90 is ideal for helicopters drawing 2,000 watts on the 6S. It's a great fit for extreme 500 and 550 class audio and sports (6S) 600 Setups. Of course, Talon 90 offers Castle's industry-leading helicopter functions, such as the unbelievable direct entry Governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!

Talon 90 is perfect for aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

• Input voltage: MIN: 3S LiPo - MAX: 6S LiPo
• Max continuous amperage at full throttle: 90 amps (rating determined with 5mph airflow across the ESC)
• BEC voltage (voltage regulator for powering radio and servos): User selectable choice of 6 or 8 volt output
• BEC output: 20 amp Peak * - 9 amp continuous

• Width: 43 mm
• Length: 80 mm
• Depth: 18 mm
• (Mounting bracket adds 2 mm depth and 8 mm width)
• Weight: 84.5 g with 150 mm power wires and no battery connectors

• Battery connector (sold separately)
• Female motor bullets are built into the ESC
• Matching male bullets are included

• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.

*Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos' current draw transients. Always confirm servo servo current draw before the first flight of the model.
