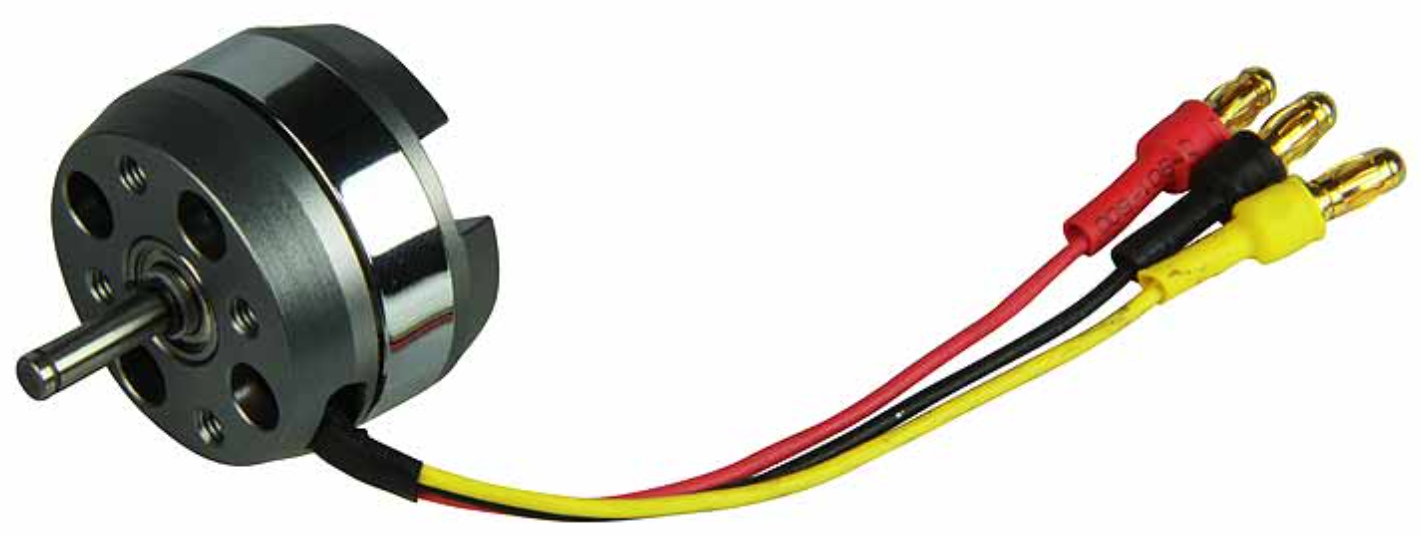

ROXXY BL C28-22-1270kV (90w)
Multiplex ROXXY BL C28-22-1270kV
Soveltuu:
  • sähköliidokit max 500g
  • skaala ja sportti max 400g
  • taitolennokit ja 3D max 220g
Leveys: 28mm
Korkeus: 28mm
Pituus: 20mm
Paino: 30g
Kierros/voltti: 1270
Akseli: 3,2mm
Jännite: 7-15V
Teho: 90 wattia

Käyttöohje

ROXXY BL C28-22-1270kV (90w)

Rating is 0.0 out of five stars based on reviews
SKU: 314951
€35.00Price
Out of Stock

  • motor with Ø 28 mm ROXXY ® Brushless motors with neodymium magnets are the latest electric drives. Especially with external rotor motors that do not require a gearbox, high-torque motors with high efficiency are available over a wide range of services. Due to their design, external rotor motors can drive large propellers without gears.

    This makes it ideal for direct drive.

    • High efficiency due to maximum copper filling level and the use of high quality neodymium magnets.
    • Smooth running thanks to large precision ball bearings
    • Can be mounted on both sides

    Suitable for:
    E-sailors up 500 g
    Scale and sport up 400 g
    Aerobatics and 3D up 220 g



    Suitable propellers can be found in the ROXXY ® -Mot-Prop-Finder under "Downloads".

    Scope of delivery

    engine; Engine mount; Propeller driver; Small parts set

    Width : 28 mm
    Length : 20 mm
    Weight : 0.03 Kg Motor
    type: brushless OR
    motor size Diameter in mm: 28
    revolutions per volt: 1270 Motor
    shaft diameter in mm: 3.2
    Voltage range in V: 7-15V Motor
    power in watts: 90
    Battery recommendation: 2-4S LiPo
