ROXXY D35-55-590kV 700W

14-pole BL external rotor
motor with Ø 35 mm ROXXY ® brushless motors with neodymium magnets are state-of-the-art electric drives. Especially with external rotor motors that do not require a gearbox, high-torque motors with a high degree of efficiency are available over a wide range of services. Due to their design, external rotor motors can drive large propellers without gears.


High efficiency through maximum copper filling and use of high quality neodymium magnets.
• Easy running thanks to large precision ball bearings.
• Can be mounted on both sides

The ROXXY ® -BL external rotor motors of the D and CA series are equipped with triple ball bearings. A third, so-called
thin-section ball bearing is used to improve concentricity and precision . This prevents the motor housing from twisting under load and ensures that the motor runs smoothly.

E-sailor up 3200 g

Scale and sport up2500 g

Aerobatics and 3D up1800 g

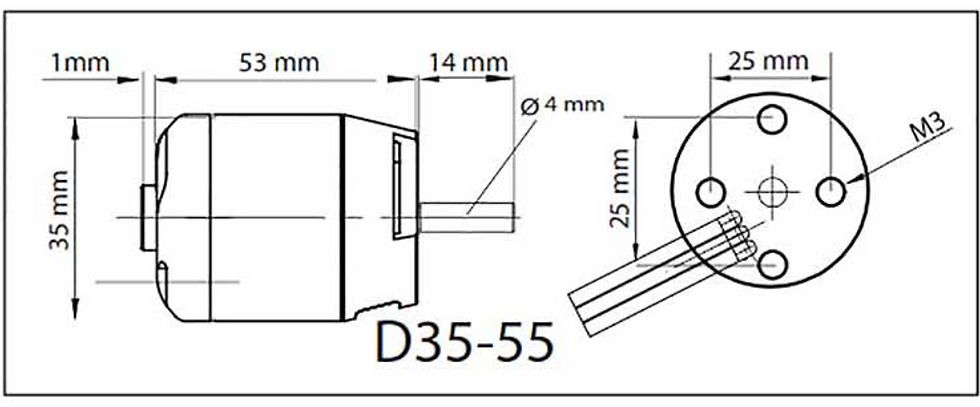

Width : 35 mm
Length : 55 mm
Weight : 0.175 kg Motor
type: brushless OR Motor
size Diameter in mm: 35
revolutions per volt: 590 Motor
shaft diameter in mm: 4
Voltage range in V: 7-20V Motor
power in watt: 700
Battery recommendation: 2-5S LiPo
